microDRIVE LP/LPi Docs

This documentation contains a technical guide and information on the operation of microDRIVE electronic speed controllers.

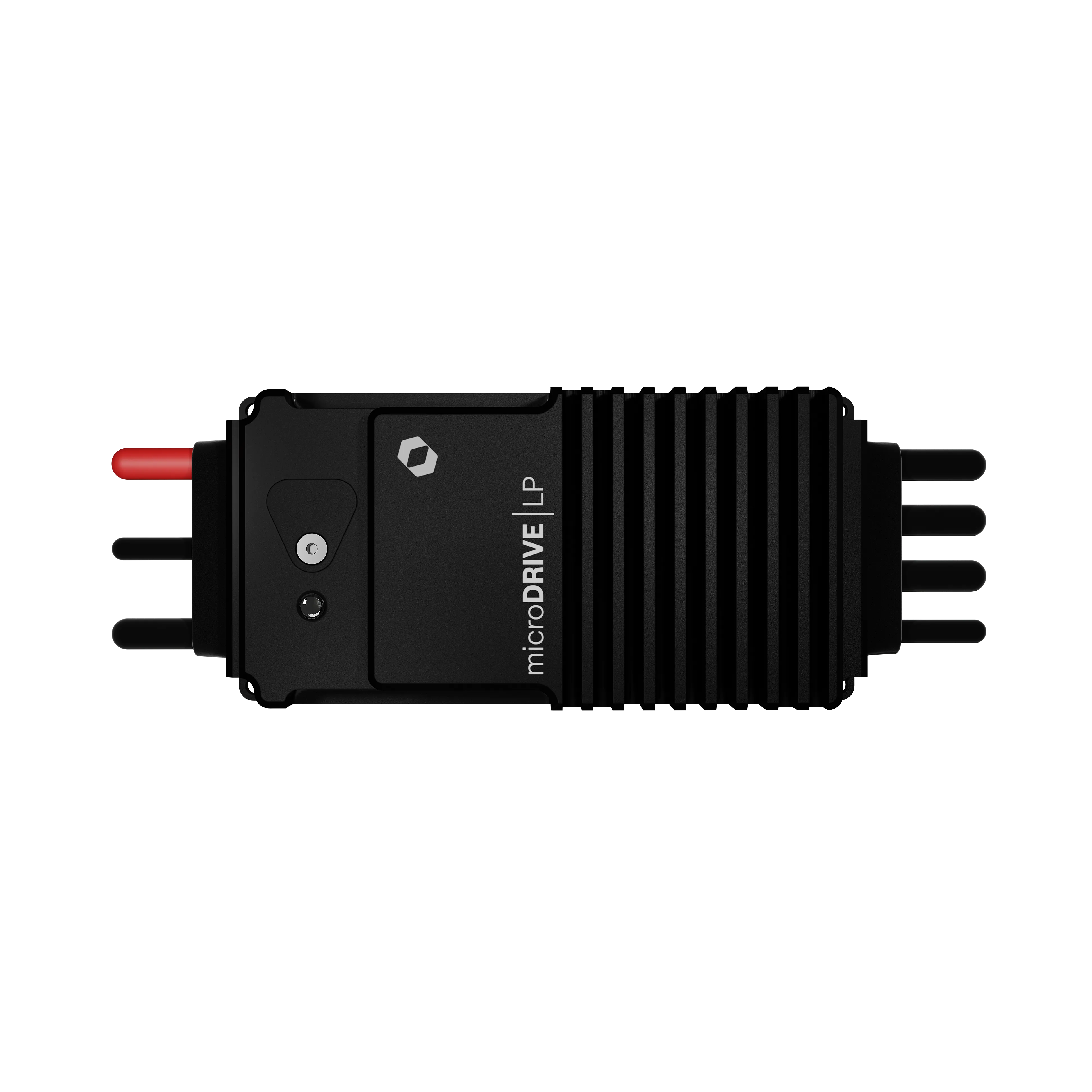

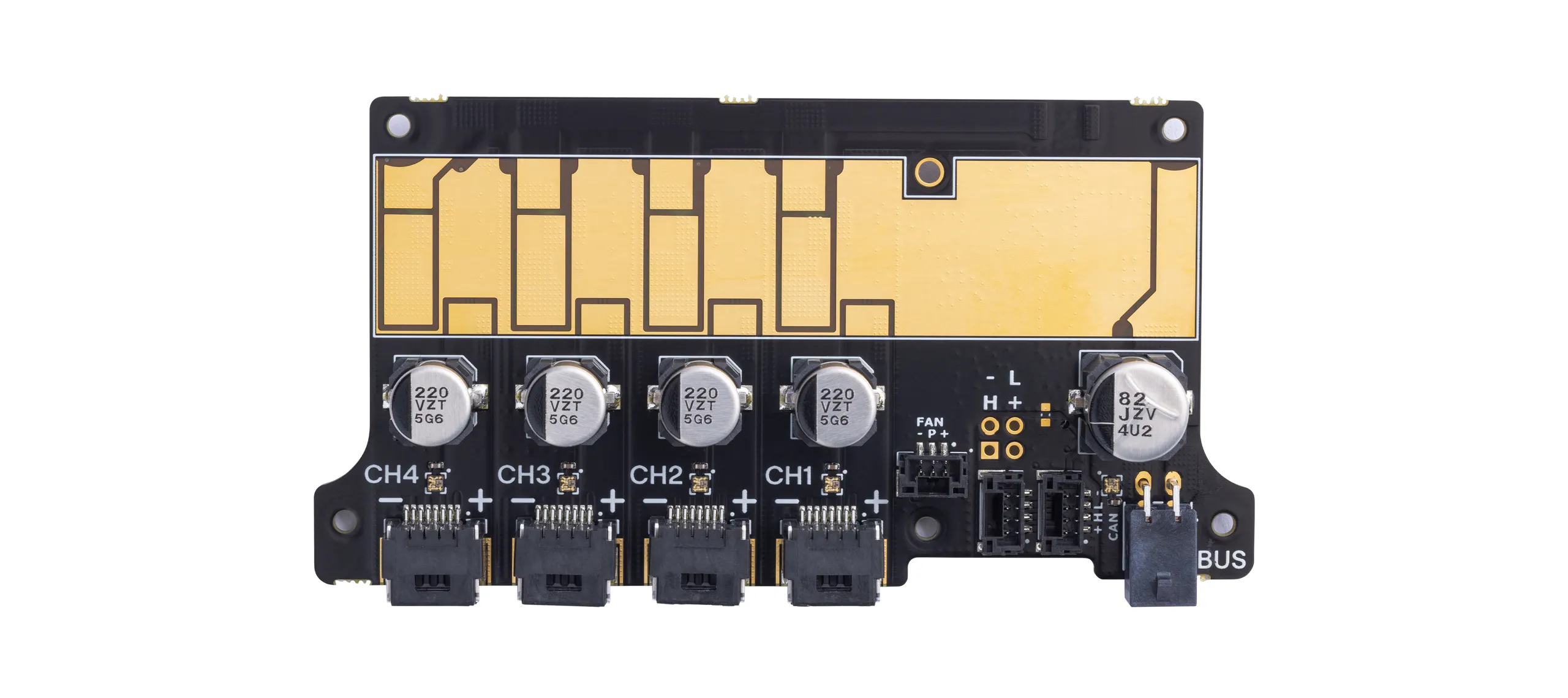

microDRIVE LP
microDRIVE LP

microDRIVE LPi
microDRIVE LPi


Quick Links

Access to the main areas of these documents can be found below.



Features

The key features of the microDRIVE hardware and firmware:

  • DroneCAN, DShot, and Standard Servo PWM support.
  • FOCAL and Trapezoidal motor control methods.
  • Motor temperature sensing.
  • Propeller parking functionality (motor sensor required).
  • Onboard capacitor bank.
  • Accurate telemetry measurement over full operation range.
  • IP-rated enclosure available - LP.
  • Pre-cabled and connector terminated variant available - LP.
  • Highly configurable over multiple interfaces.
  • Internal high-speed data logging.
  • Software-selectable CAN termination resistor.
  • Self-health checking with hardware self-tests on start-up.
  • Self-correcting memory, use of onboard backups and error-correcting codes.
  • Counterfeit protection.
  • NDAA-compliant options.

Support

We pride ourselves on industry-leading support. A support engineer is available for all questions and assistance. Contact details can be found below.
