Single channel enabled, measured from mated input connector to mated output connector. Measured at 25 °C [77 °F] ambient temperature with high airflow provided across the heatsink.

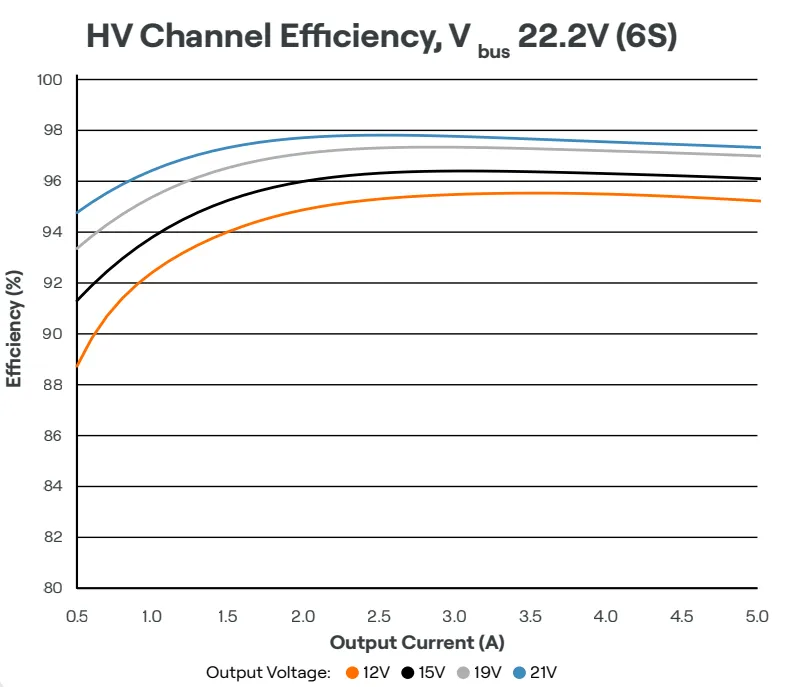

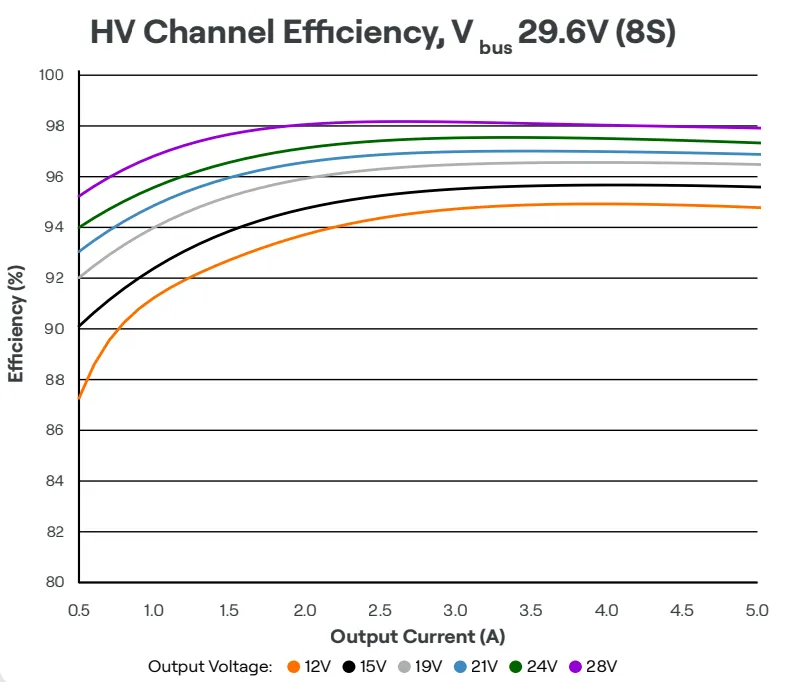

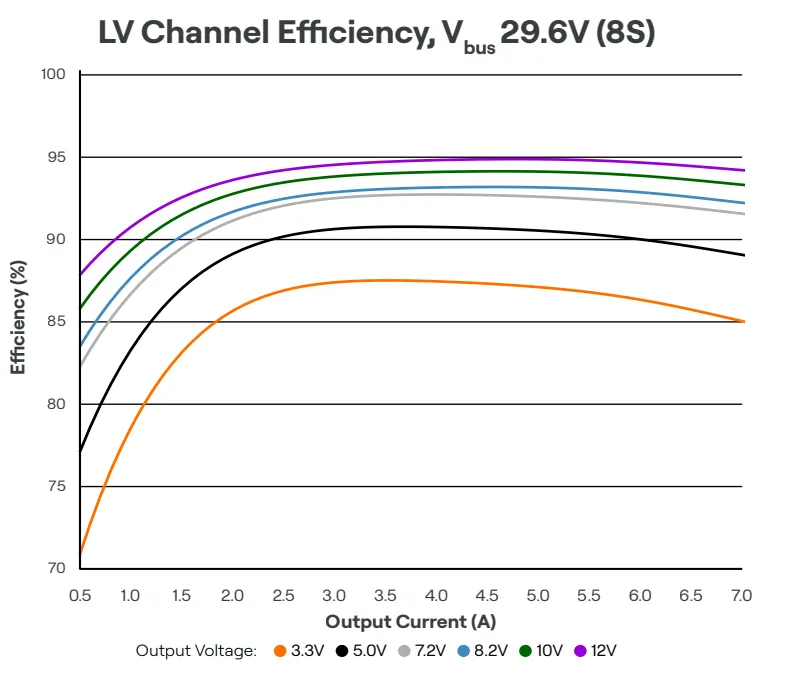

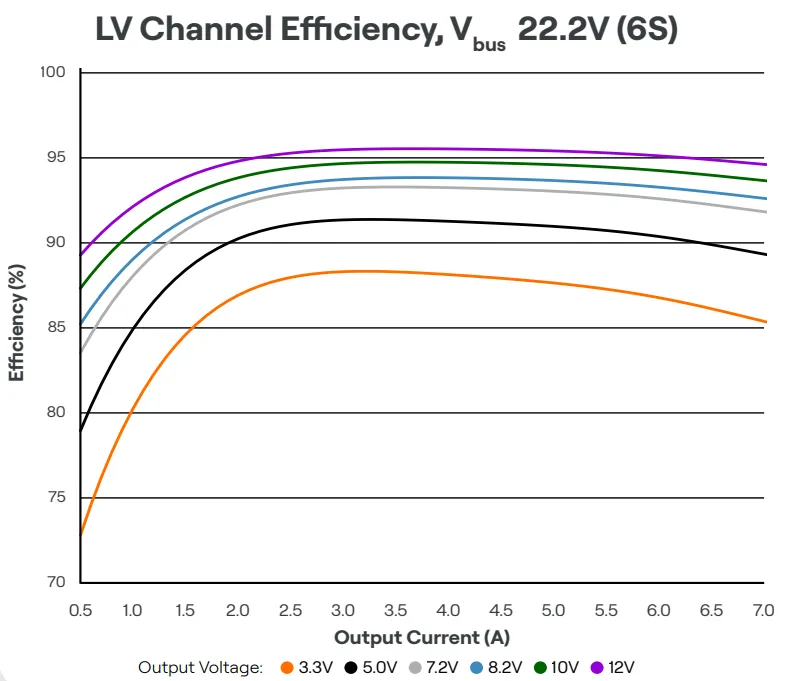

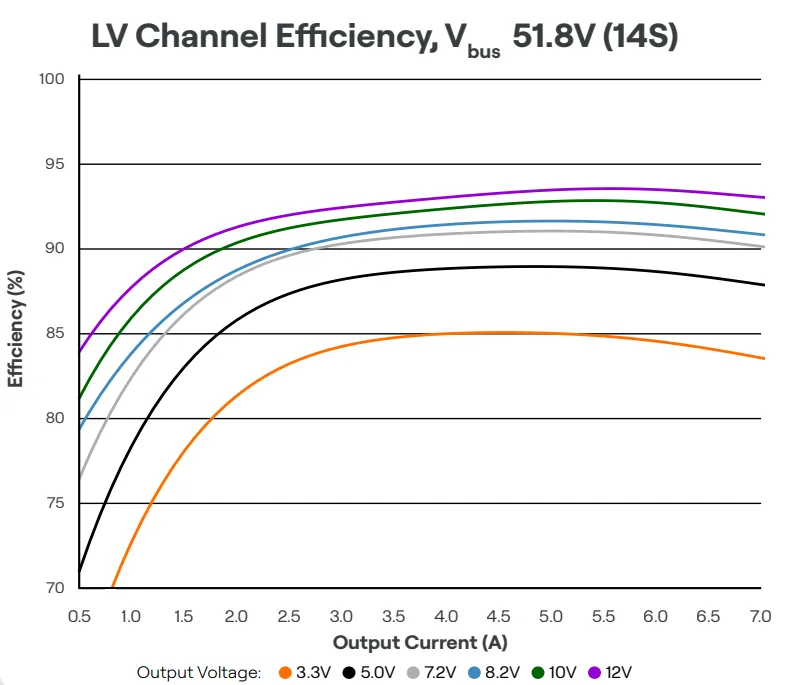

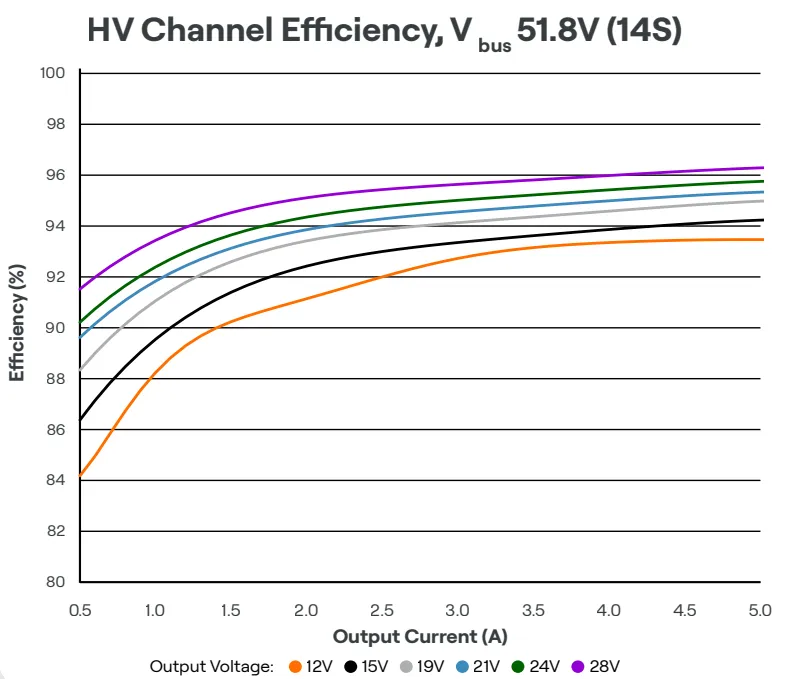

Thermal Performance

Efficiency

model_name

Thermal Loss
